FL19GJ
Product Introduction

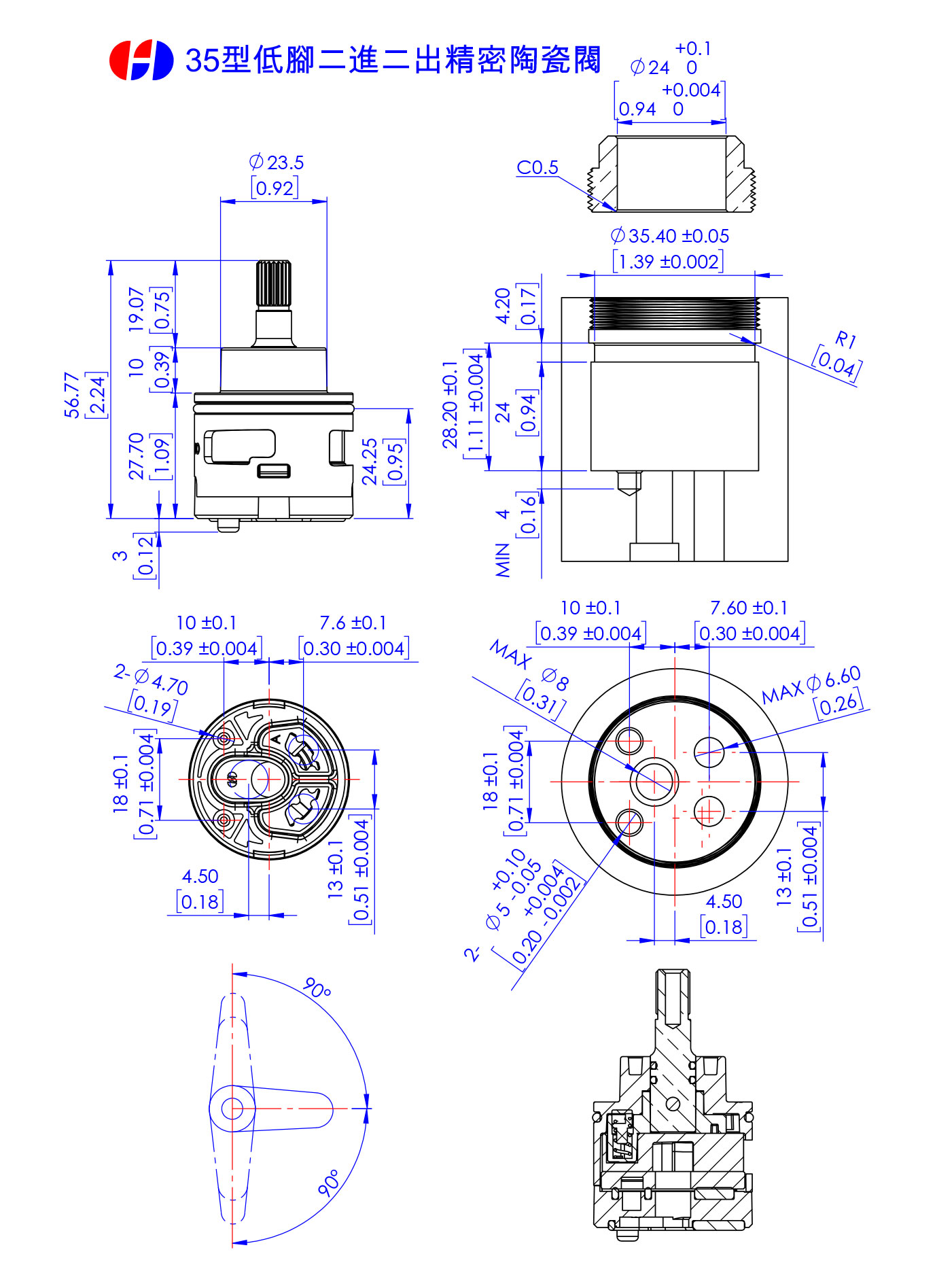

| Mixer Diverter Cartridge Model no. FL19GJ |
| Technical characteristics of the ceramic discs | |||
|---|---|---|---|
| Material | AL2O3 92%~96% | ||
| Surface roughness | Ra 0.1 ~ Ra 0.3 μm | ||
| Hardness | ＞1000 HV | ||
| Flatness | ＜0.6 μm | ||
| Technical characteristics of the cartridge | |||
| Max. rotary angle in bath position (clockwise ) |
90° | ||
| Max. rotary angle in shower position (counterclockwise) |
90° | ||
| Recommended nut tightening torque | 8~10 N.m | ||
| Water resistance pressure | 350~500 psi | ||
| Max. temperature | 90℃(194℉) | ||
| Endurance test | 500,000 cycles (ASME A112.18.1) 70,000cycles(EN 817) |
||
| Flow rate-Shower Position/Bottom Outlet | |||
| Water pressure |
Hot water (L/min) |
Cold water (L/min) |
Mixing (L/min) |
| 1 bar | 7.55 | 8.33 | 11.21 |
| 2 bar | 10.48 | 12.36 | 16.65 |
| 3 bar | 13.10 | 15.14 | 20.55 |
| Flow rate-Bath Position/Side Outlet | |||
| Water pressure |
Hot water (L/min) |
Cold water (L/min) |
Mixing (L/min) |
| 1 bar | 11.83 | 11.18 | 13.28 |
| 2 bar | 17.21 | 15.94 | 18.86 |
| 3 bar | 20.97 | 19.58 | 23.22 |
