DL19BD

Product Introduction
Mixer Diverter Cartridge
Model no. DL19BD
DL19BD
Product Name : DL19BD
Product Description

Functions

Ø40mm Mixer Diverter Cartridge w/ Flow Control
Dual Bottom outlet
Option : Temp. Limited Blocks

Features

  • 3-in-1 integrated design for effortless operation
  • Combined temperature, flow, and diverter control
  • Built-in diverter reduces component count
  • Lowers installation cost and leakage risk
  • Optional temperature limiter for single or dual outlet configuration
  • Complies with EN817 sensitivity standard
Inquiry
Technical characteristics of the ceramic discs
Material AL2O3 92%~96%
Surface roughness Ra 0.1 ~ Ra 0.3 μm
Hardness ＞1000 HV
Flatness ＜0.6 μm
Technical characteristics of the cartridge

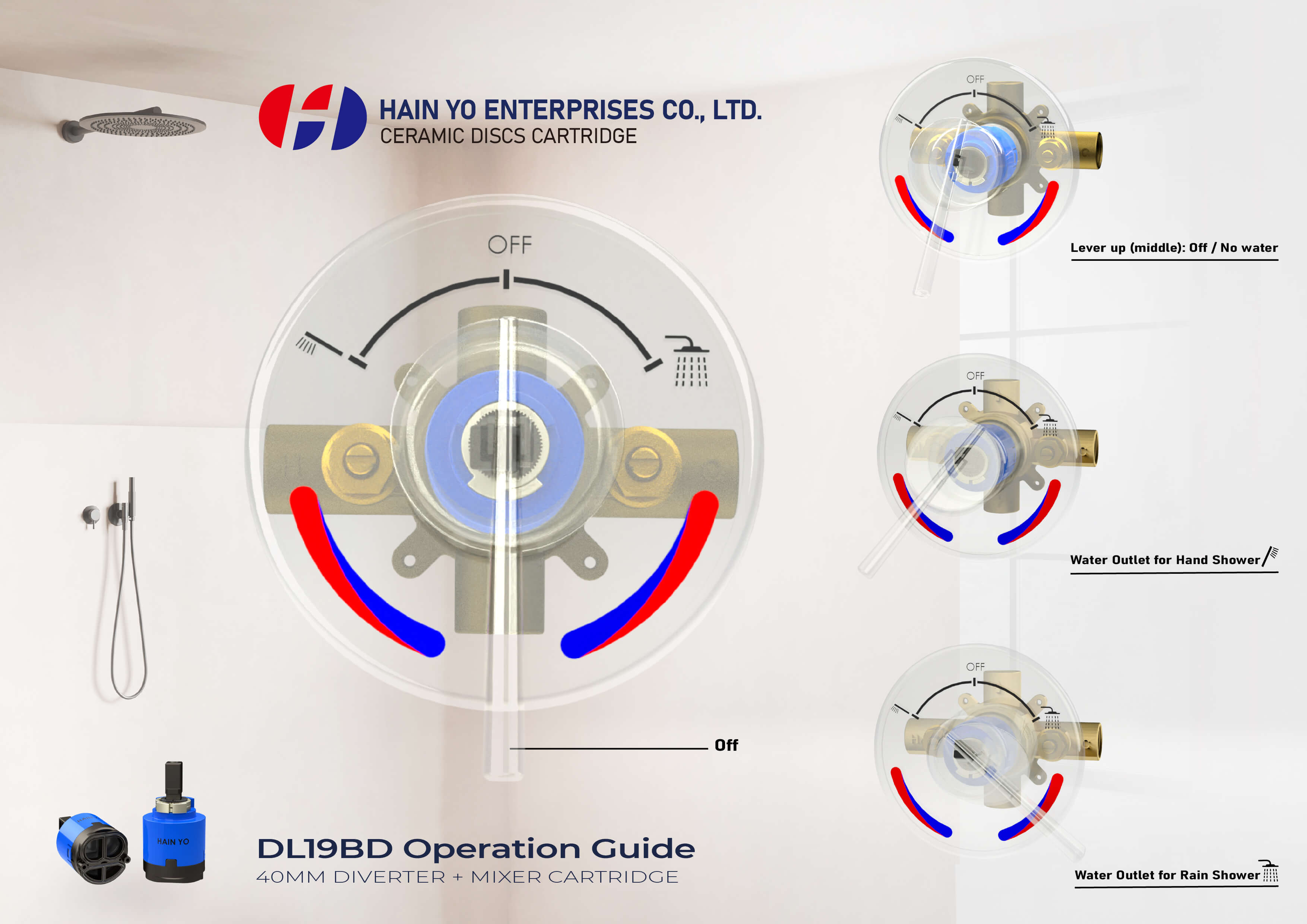

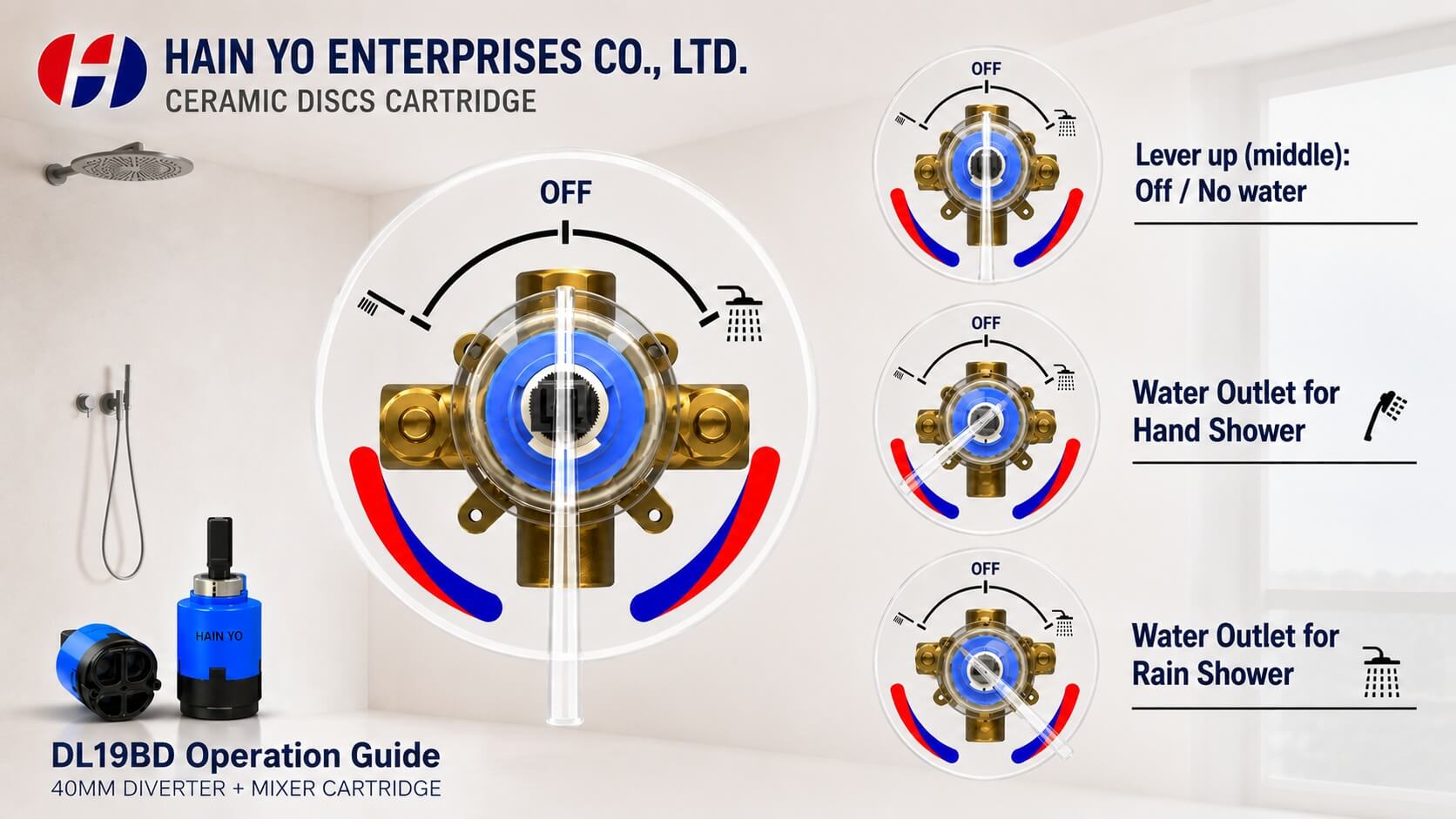

Max. rotary angle in hand shower position (clockwise) 70°
Max. rotary angle in rain shower position (counterclockwise) 70°
Recommended nut tightening torque 10~12 N.m
Water resistance pressure 500 psi
Max. temperature 90℃(194℉)
Endurance test 500,000 cycles (ASME A112.18.1)
70,000 cycles (EN817)
Flow rate-Clockwise
Water pressure Hot water
(L/min)		 Cold water
(L/min)		 Mixing
(L/min)
1 bar 9.51 8.12 12.31
2 bar 13.93 11.80 17.88
3 bar 17.21 14.58 22.06
Flow rate-Counterclockwise
Water pressure Hot water
(L/min)		 Cold water
(L/min)		 Mixing
(L/min)
1 bar 6.59 7.57 11.28
2 bar 9.45 10.90 15.97
3 bar 11.58 13.33 19.64
