Product Introduction
Ceramic Cartridge

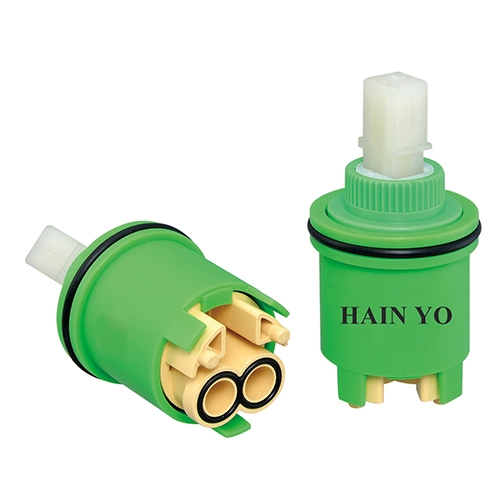

Model no. WH16GJ
Product Name : WH16GJ
Product Description

Functions

Ø32mm Ceramic Cartridge
Side-Outlet Type
With Distributor
Technical characteristics of the ceramic discs
Material AL2O3 92%~96%
Surface roughness Ra 0.1 ~ Ra 0.3  μm
Hardness >1000 HV
Flatness <0.6  μm
Technical characteristics of the cartridge
Max. opening angle 23°
Max. rotary angle 100°
Recommended nut tightening torque 7~8 N.m
Water resistance pressure 350~500 psi
Max. temperature 90℃(194℉)
Endurance test 500,000 cycles (ASME A112.18.1)
70,000cycles(EN817)
Flow rate
Water
pressure
Hot water
(L/min)
Cold water
(L/min)
Mixing
(L/min)
1 bar 4.80 4.89 5.40
2 bar 8.39 8.46 9.04
3 bar 10.29 10.45 11.59
