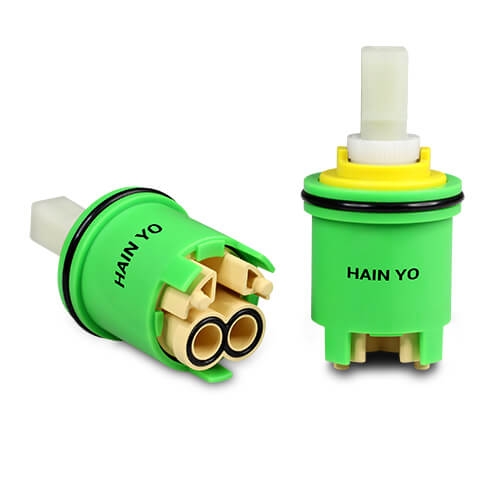

WH16GJ-0012
Product Introduction
| Model no. WH16GJ-0012 |
| Technical characteristics of the ceramic discs | |||
|---|---|---|---|
| Material | AL2O3 92% ~ 96% | ||
| Surface roughness | Ra 0.1 ~ Ra 0.3 μm | ||
| Hardness | ＞1000 HV | ||
| Flatness | ＜0.6 μm | ||
| Technical characteristics of the cartridge | |||
| Max. opening angle | 23° | ||
| Recommended nut tightening torque | 7~8 N.m | ||
| Water resistance pressure | 350 ~ 500 psi | ||
| Max. temperature | 90℃ (194℉) | ||
| Endurance test | 500,000 cycles (ASME A112.18.1) 70,000 cycles (EN817) |
||
| Flow rate | |||
| Water pressure | Hot/Cold (L/min) |
||
| 1 bar | 9.9 | ||
| 2 bar | 13.8 | ||
| 3 bar | 16.6 | ||
