Pressure Balance Cartridge
Model no. JL04BD
Product Name : JL04BD
Product Description

Functions

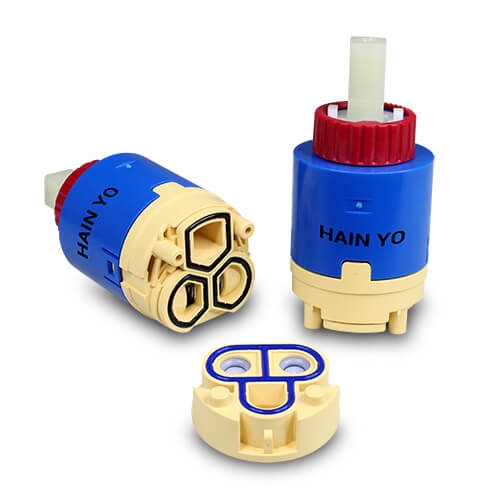

NEW Ø40mm Pressure Balance Cartridge
Low Torque Structure Type
Without Distributor
★  Conform with  2018   " California Energy Commission  (CEC)"   New Standard
Technical characteristics of the ceramic discs
Material AL2O3 92%~96%
Surface roughness Ra 0.1 ~ Ra 0.3  μm
Hardness >1000 HV
Flatness <0.6  μm
Technical characteristics of the cartridge
Max. opening angle 25°
Max. rotary angle 110°
Recommended nut tightening torque 10~12 N.m
Water resistance pressure 500 psi
Max. temperature 90℃(194℉)
Endurance test 20,000 cycles (ASSE 1016-Piston)
80,000 cycles (ASSE 1016-Disc)
Flow rate
Water pressure Hot
(L/min)
Cold
(L/min)
Mixing
(L/min)
1 bar 5.00 5.40 10.00
2 bar 7.00 7.60 14.00
3 bar 9.60 9.80 18.10
