JL01GJ (HJ-40)
Product Introduction
| Pressure Balance Cartridge Model no. JL01GJ |

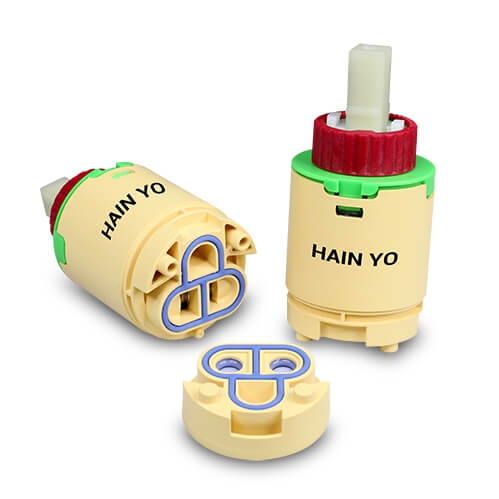

.jpg "JL01GJ Pressure Balance Cartridge")
| Technical characteristics of the ceramic discs | |||
|---|---|---|---|
| Material | AL2O3 92%~96% | ||
| Surface roughness | Ra 0.1 ~ Ra 0.3 μm | ||
| Hardness | ＞1000 HV | ||
| Flatness | ＜0.6 μm | ||
| Technical characteristics of the cartridge | |||
| Max. opening angle | 25° | ||
| Max. rotary angle | 110° | ||
| Recommended nut tightening torque | 10~12 N.m | ||
| Water resistance pressure | 500 psi | ||
| Max. temperature | 90℃(194℉) | ||
| Endurance test | 20,000 cycles (ASSE 1016-Piston) 80,000 cycles (ASSE 1016-Disc) |
||
| Flow rate | |||
| Water pressure |
Hot (L/min) |
Cold (L/min) |
Mixing (L/min) |
| 1 bar | 5.60 | 6.80 | 9.44 |
| 2 bar | 8.00 | 9.20 | 13.84 |
| 3 bar | 10.00 | 11.40 | 16.80 |
| 4 bar | 11.20 | 12.80 | 19.52 |
