JH02BJ (HL-40)
Product Introduction

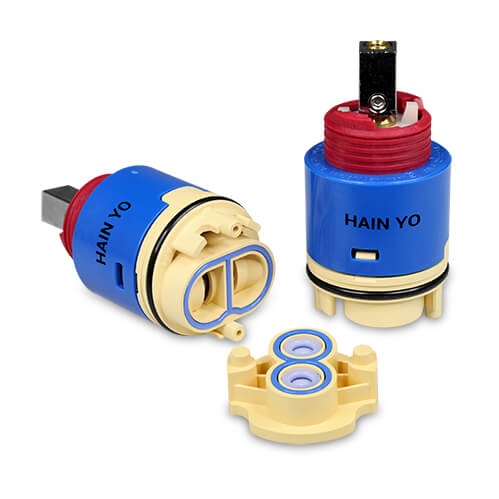

| Pressure Balance Cartridge Model no. JH02BJ |
| Technical characteristics of the ceramic discs | |||
|---|---|---|---|
| Material | AL2O3 92%~96% | ||
| Surface roughness | Ra 0.1 ~ Ra 0.3 μm | ||
| Hardness | ＞1000 HV | ||
| Flatness | ＜0.6 μm | ||
| Technical characteristics of the cartridge | |||
| Max. rotary angle | 119° | ||
| Recommended nut tightening torque | 10~12 N.m | ||
| Water resistance pressure | 500 psi | ||
| Max. temperature | 90℃(194℉) | ||
| Endurance test | 20,000 cycles (ASSE 1016-Piston) 80,000 cycles (ASSE 1016-Disc) |
||
| Flow rate | |||
| Water pressure | Mixing (L/min) |
||
| 1 bar | 9.70 | ||
| 2 bar | 15 | ||
| 3 bar | 19.20 | ||
