Product Introduction
Pressure Balance Cartridge
Model no. JH02BD

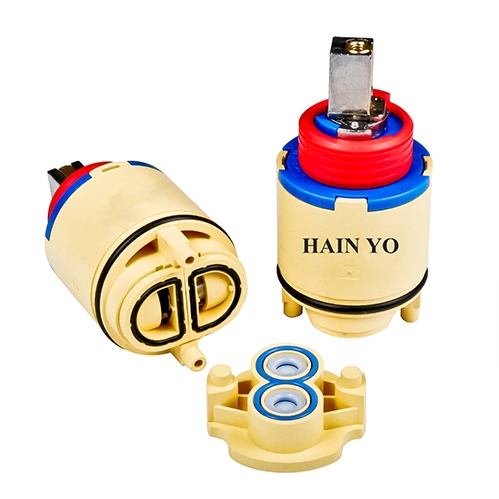

Product Name : JH02BD-201/202
Product Description


NEW Ø40mm Pressure Balance Cartridge
Back to Back 180° Reverse Type
With Distributor
Option : Check Valve Set
★  Conform with  2018   " California Energy Commission  (CEC)"   New Standard
Technical characteristics of the ceramic discs
Material AL2O3 92%~96%
Surface roughness Ra 0.1 ~ Ra 0.3  μm
Hardness >1000 HV
Flatness <0.6  μm

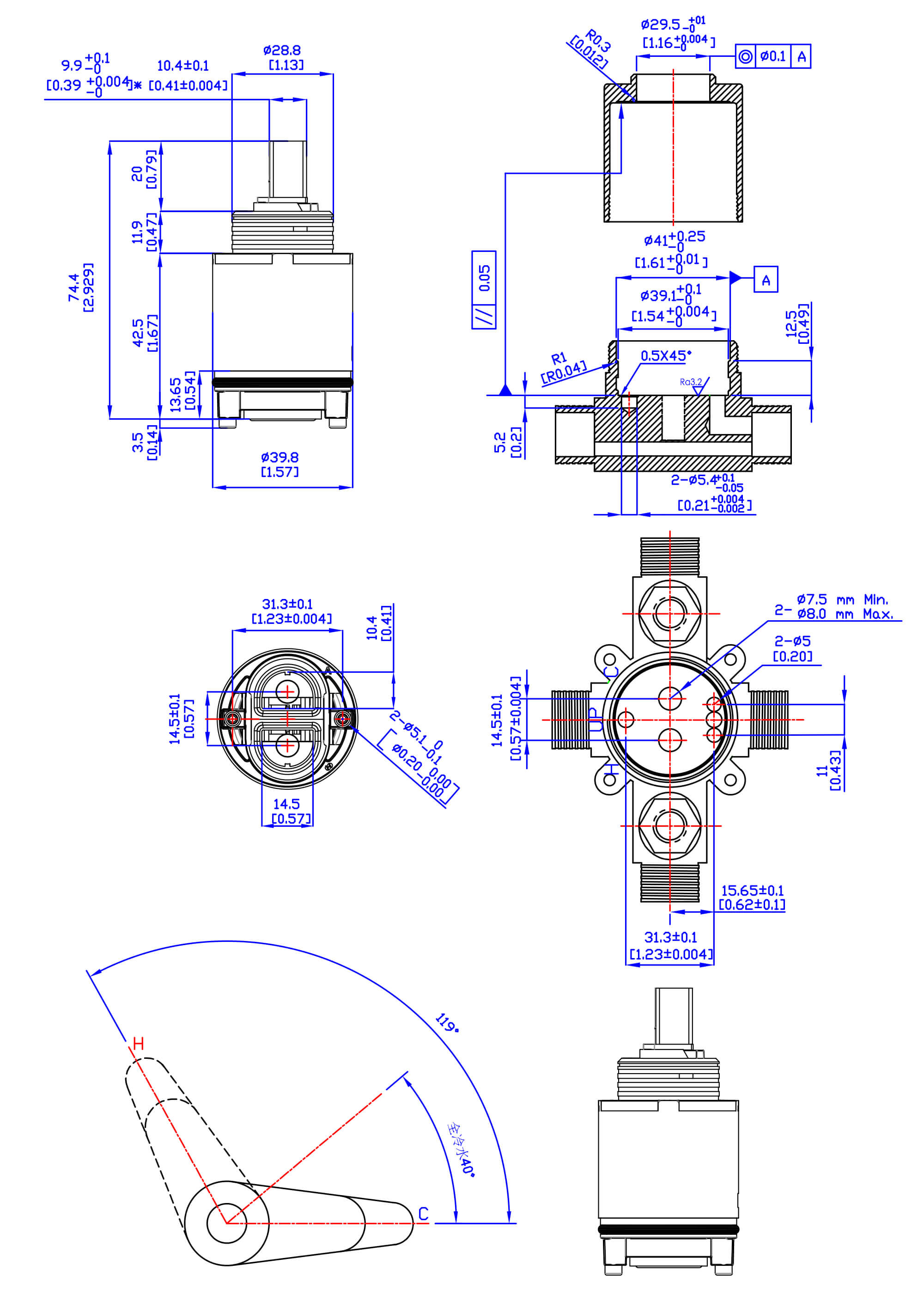

Technical characteristics of the cartridge
Max. rotary angle 119°
Recommended nut tightening torque 10~12 N.m
Water resistance pressure 500 psi
Max. temperature 90℃(194℉)
Endurance test 20,000 cycles (ASSE 1016-Piston)
80,000 cycles (ASSE 1016-Disc)
Flow rate
Water pressure  Mixing
1 bar 10.00
2 bar 16.00
3 bar 20.20
