FL19GJ-006/106
Product Introduction

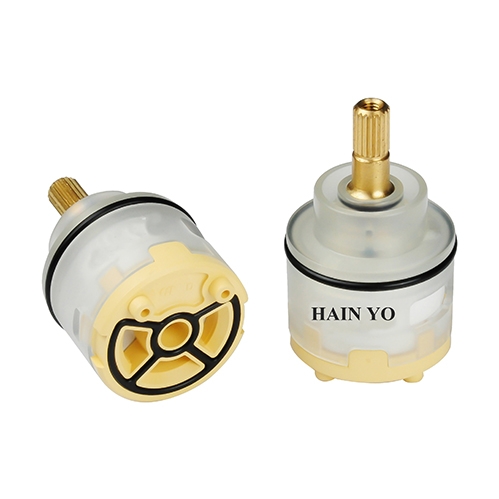

2 IN 1 Ceramic Cartridge
Model no. FL19GJ-006 / 106 / 026 / 126 / 046 / 146
Model no. FL19GJ-006 / 106 / 026 / 126 / 046 / 146
| Technical characteristics of the ceramic discs | |||
|---|---|---|---|
| Material | AL2O3 92%~96% | ||
| Surface roughness | Ra 0.1 ~ Ra 0.3 μm | ||
| Hardness | ＞1000 HV | ||
| Flatness | ＜0.6 μm | ||
| Technical characteristics of the cartridge | |||
| Max. rotary angle in Drinking Water (clockwise ) | 30° | ||
| Max. rotary angle in RAW Water (counterclockwise) |
90° | ||
| Recommended nut tightening torque | 8~10 N.m | ||
| Water resistance pressure | 250~300 psi | ||
| Max. temperature | 90℃(194℉) | ||
| Endurance test | ≧500,000cycles (ASME A112.18.1) |
||
| Flow rate-Drinking Water | |||
| Water pressure |
Flow Rate (L/min) |
||
| 1 bar | 5.80 | ||
| 2 bar | 8.00 | ||
| 3 bar | 9.60 | ||
| Flow rate-Raw Water | |||
| Water pressure |
Hot water (L/min) |
Cold water (L/min) |
Mixing (L/min) |
| 1 bar | 7.10 | 7.20 | 8.80 |
| 2 bar | 9.90 | 10.00 | 12.10 |
| 3 bar | 11.90 | 12.30 | 14.80 |
