Product Introduction
Ceramic Cartridge

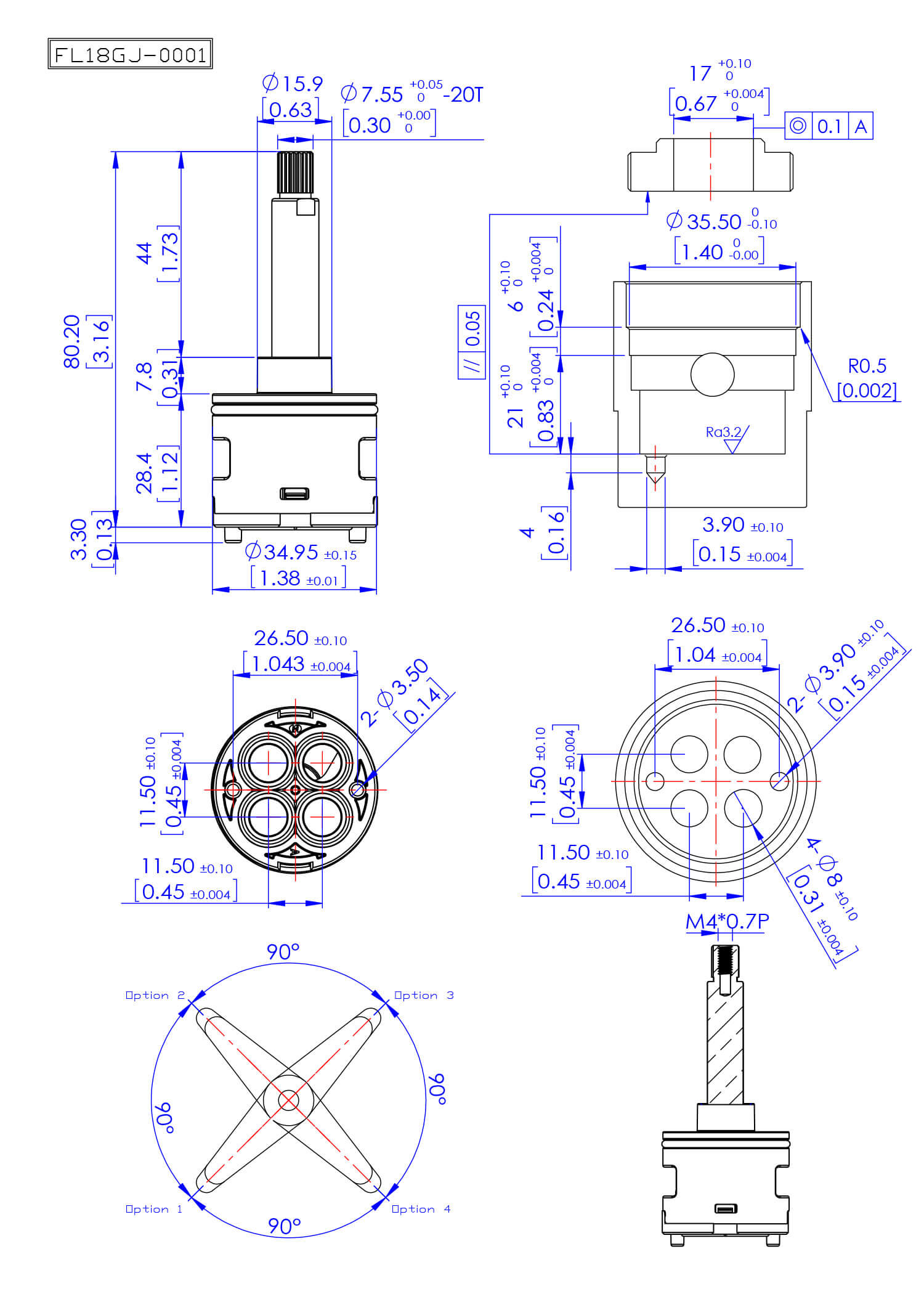

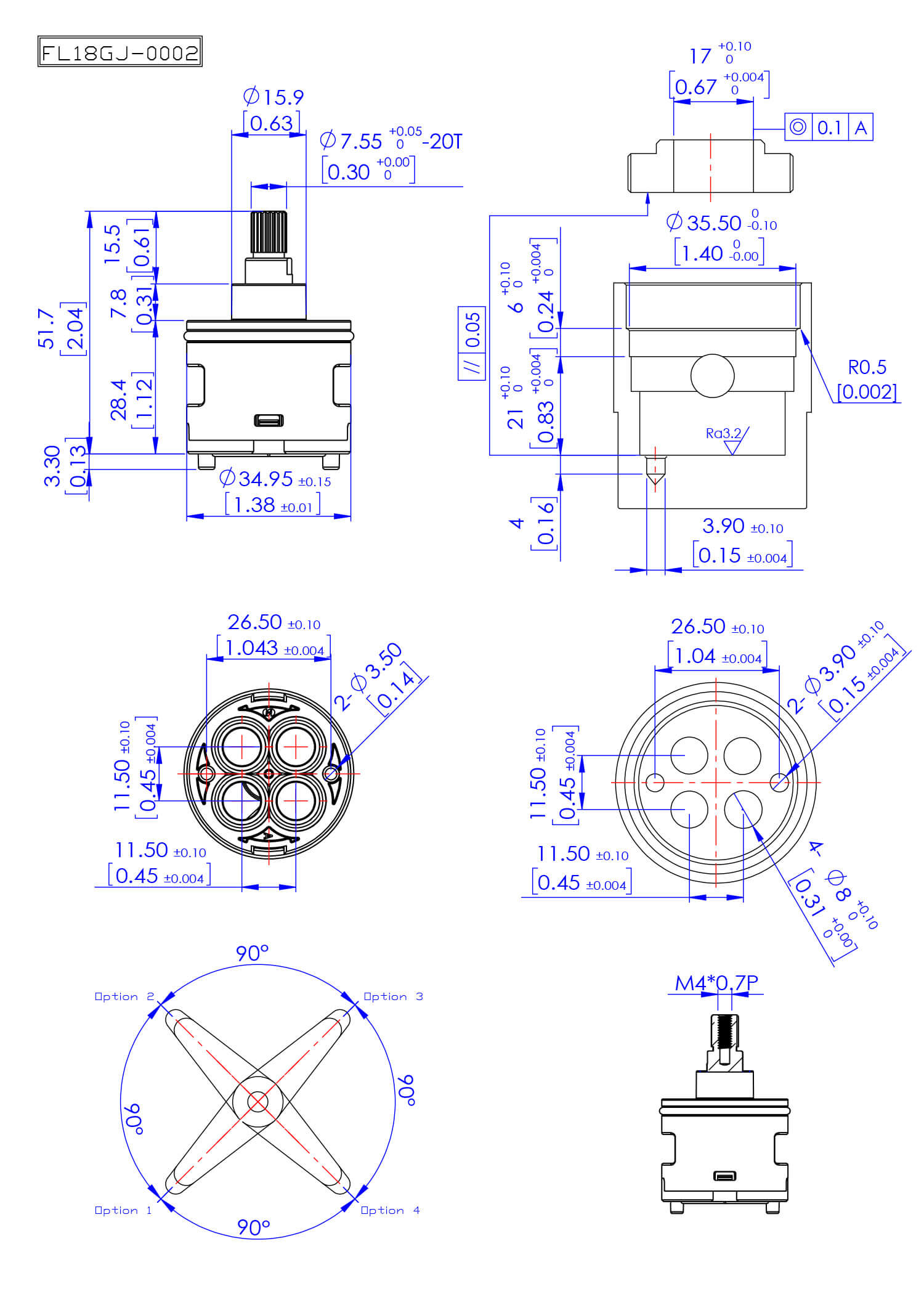

Model no. FL18GJ-001/002
Product Name : FL18GJ-001/002
Product Description

Functions

Ø35mm Diverter Cartridge
4-Way diverter
Without Distributor
Technical characteristics of the ceramic discs
Material AL2O3 92%~96%
Surface roughness Ra 0.1 ~ Ra 0.3  μm
Hardness >1000 HV
Flatness <0.6  μm
Technical characteristics of the cartridge
Max. rotary angle 360°
Recommended nut tightening torque 7~8 N.m
Water resistance pressure 350~500 psi
Max. temperature 90℃(194℉)
Endurance test ≧15,000cycles
(ASME A112.18.1)
Flow rate
Water
pressure
Water Flow Rate
(L/min)
1 bar 17.00
2 bar 22.70
3 bar 25.50
