Product Introduction
Model no. FL02GJ-550 / 555

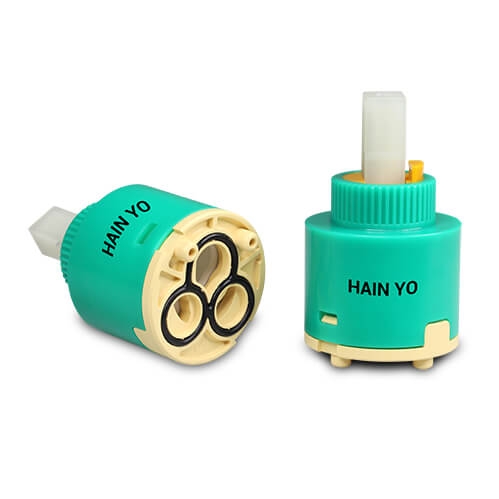

Product Name : FL02GJ-555
Product Description

Functions

NEW Ø35mm Energy-Saving Cartridge(for Kitchen Faucet)
Without Distributor
Option : Temp.Adjust, Noise Reducer.
Technical characteristics of the ceramic discs
Material AL2O3 92%~96%
Surface roughness Ra 0.1 ~ Ra 0.3  μm
Hardness >1000 HV
Flatness <0.6  μm
Technical characteristics of the cartridge
Max. opening angle 24.5°
Max. rotary angle Anti-clockwise 90°
Recommended nut tightening torque 8~10 N.m
Water resistance pressure 350~500 psi
Max. temperature 90℃(194℉)
Endurance test 500,000 cycles (ASME A112.18.1)                                 70,000cycles (EN817)
Flow rate
Water
pressure
Hot water
(L/min)
Cold water
(middle position)
(L/min)
Mixing
(L/min)
1 bar 10.40 10.20 13.60
2 bar 14.20 13.80 18.80
3 bar 16.80 16.20 22.50
proimages/Cartography/CERAMIC CARTRIDGE/35mm/FL02GJ-550.555.jpg
