Ceramic Cartridge

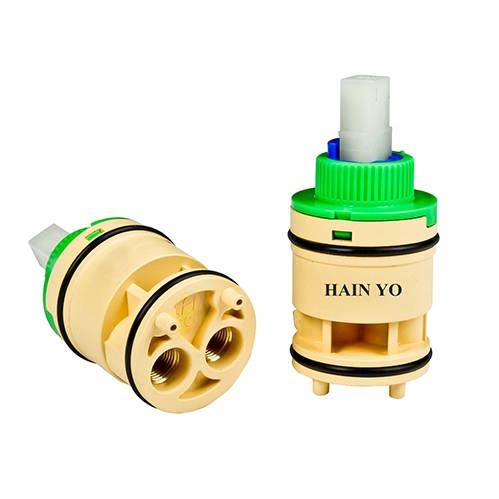

Model no. FH17GJ-540 / 550 / 640 / 650
Product Name : FH17GJ-540/550/640/650
Product Description

Functions

NEW Ø35mm Ceramic Cartridge
Connected Pipe Type+Energy Saving(30°/60°)
With Distributor
Option : Temp. Adjuster, Noise Reducer
Technical characteristics of the ceramic discs
Material AL2O3 92%~96%
Surface roughness Ra 0.1 ~ Ra 0.3  μm
Hardness >1000 HV
Flatness <0.6  μm
Technical characteristics of the cartridge
Max. opening angle 23.5°
Max. rotary angle 90°
Recommended nut tightening torque 8~10 N.m
Water resistance pressure 350~500 psi
Max. temperature 90℃(194℉)
Endurance test 500,000 cycles (ASME A112.18.1)
70,000 cycles (EN817)
Flow rate
Water
pressure
Hot water
(L/min)
Cold water
(L/min)
Mixing
(L/min)
1 bar 11.60 12.00 14.60
2 bar 16.00 16.80 18.80
3 bar 18.80 20.00 22.20
