Pressure Balance Cartridge
Model no. JH04BD
Product Name : JH04BD
Product Description

Functions

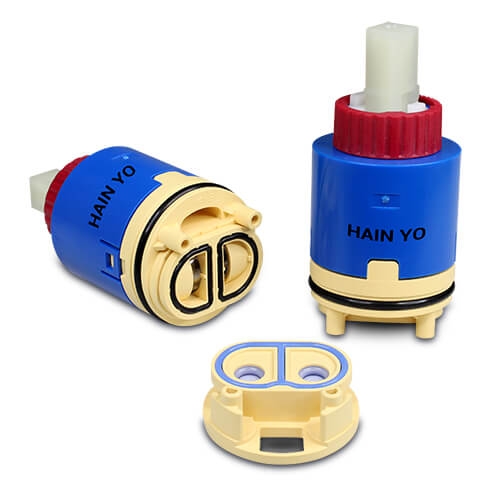

Ø40mm Pressure Balance Cartridge
Low Torque Structure Type
With Distributor
Option : Check Valve Set
★  Conform with  2018   " California Energy Commission  (CEC)"   New Standard
Technical characteristics of the ceramic discs
Material AL2O3 92%~96%
Surface roughness Ra 0.1 ~ Ra 0.3  μm
Hardness >1000 HV
Flatness <0.6  μm
Technical characteristics of the cartridge
Max. opening angle 25°
Max. rotary angle 110°
Recommended nut tightening torque 10~12 N.m
Water resistance pressure 500 psi
Max. temperature 90℃(194℉)
Endurance test 250,000 cycles (ASME A112.18.1)
Flow rate
Water pressure Hot
(L/min)
Cold
(L/min)
Mixing
(L/min)
1 bar 6.60 7.80 13.50
2 bar 10.00 11.00 19.00
3 bar 12.20 14.00 22.50
4 bar 15.00 16.90 25.50
